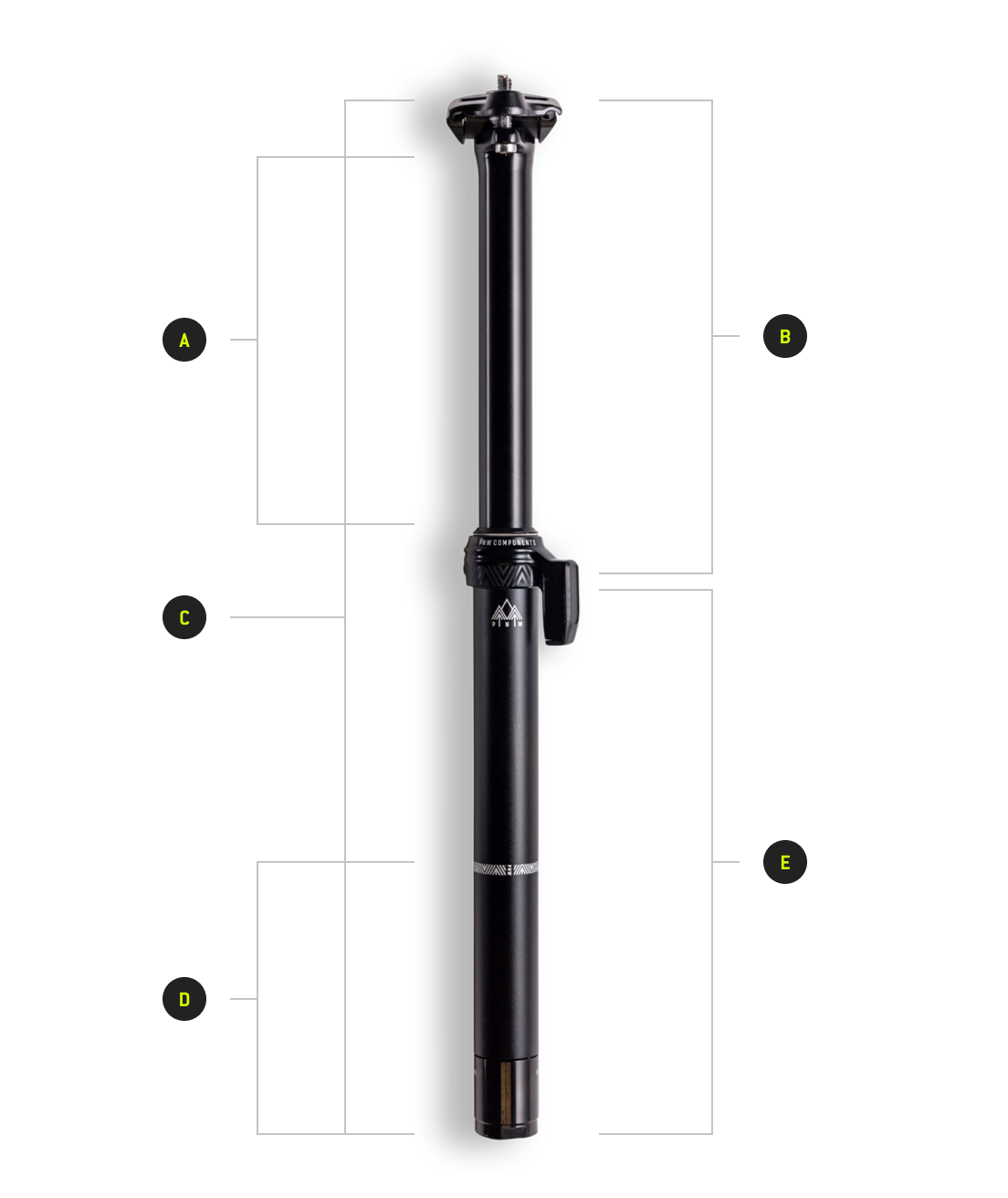

|B||Seat Collar to Center of Rails||185mm||205mm||225mm|
|D||Min. Insertion Length||90mm||110mm||130mm|
|E||Full Insertion Length||215mm||245mm||266mm|
Routing Method: External
Diameters: 30.9mm, 31.6mm
Travel: 125mm, 150mm, 170mm
Stanchion Diameter: 24mm (125mm travel), 26mm (150mm / 170mm travel)
Seatpost Material: 7075 Alloy
Lever Compatabilty: Compatible with all PNW levers and most cable actuated levers from other brands.
Cable and Housing: Cable and housing included only with the purchase of a lever kit
Like most of us, PNW dropper posts need a little TLC to work their best. This service can be done at home, but if you're not feeling that grease stain life, we can take care of it for you. Our service program treats your PNW dropper post for regular wear and tear. Learn More >>>
The Cascade is an externally routed post which makes it compatible with a lot of bikes. Next step is to confirm your seat tube diameter to see which one is right for your bike! click here >>>
We include our cable and housing kits with each of our levers. When you order the dropper by itself cable and housing will not be included.
As riding frequency and conditions vary, we do not have a strict service interval. Instead, we recommend servicing your post if it starts to feel sticky/slows down. When it does come down to service it is a quick and easy, at home process. Check out our service video's here.
The Cascade and Pine Dropper Posts are essentially identical, externally-routed posts, with the only difference being the seat posts diameters offered in each. The Cascade Dropper Post fits frames with seat tube diameters of 30.9mm or 31.6mm. The Pine Dropper Post is specific to frames with 27.2mm seat tube diameters.
